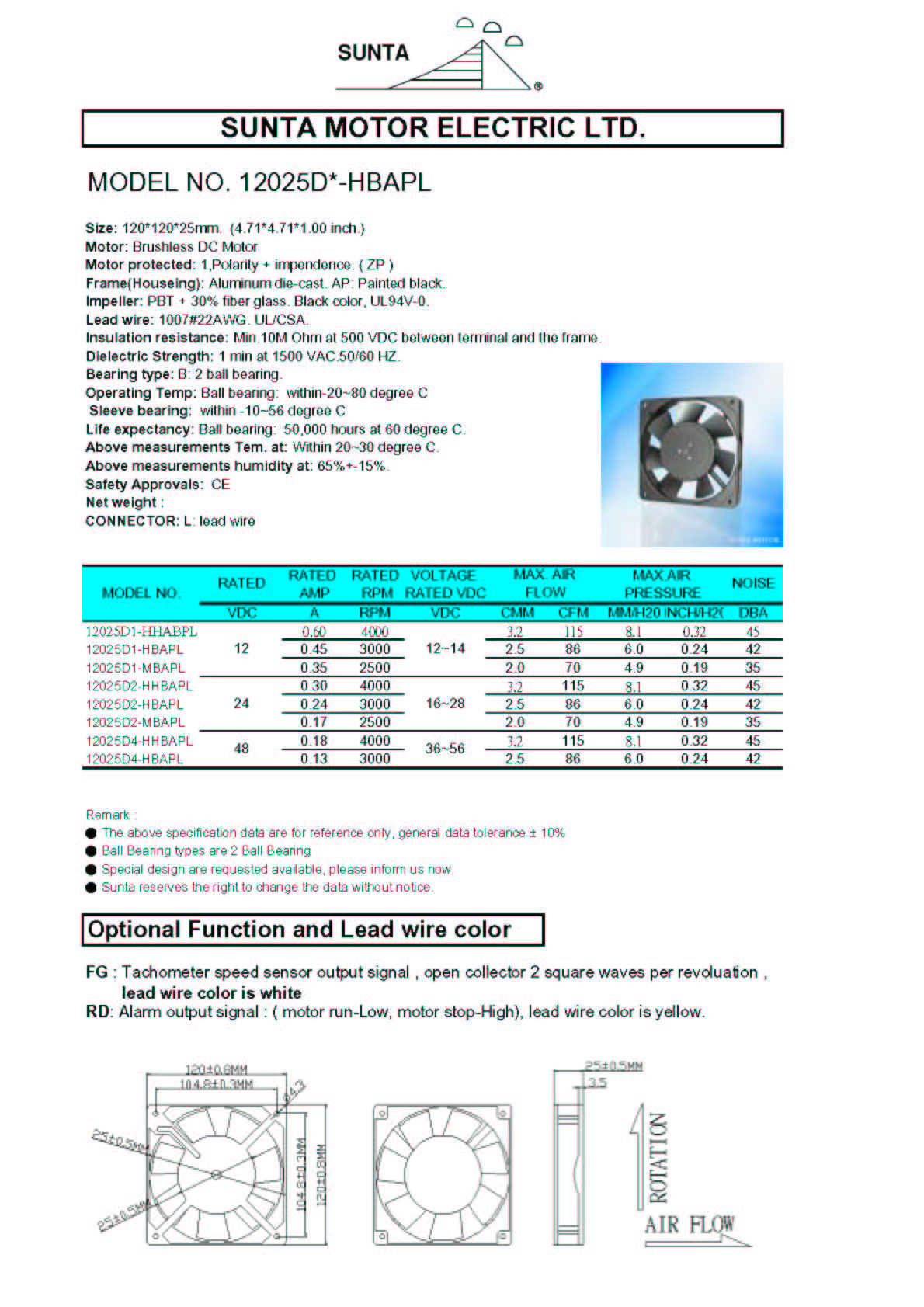

DC AXIAL FAN 散熱風扇 12025 DC FAN
Motor: Brushless DC Motor
protected: 1,polarity+over current shutdown protected.
Frame(Houseing): Aluminum die-cast. AP: Painted black.
Impeller: PBT + 30% fiber glass. Black color, UL94V-0.
Lead wire: 1007#22AWG. UL/CSA.
Insulation resistance: Min.10M Ohm at 500 VDC between terminal and the frame.
Dielectric Strength: 1 min at 1500 VAC.50/60 HZ.
Bearing type: B: 2 ball bearing. Sleeve bearing S: one Sleeve bearing
Operating Temp: Ball bearing: within-20~80 degree C
Sleeve bearing: within-10~56 degree C
Sleeve bearing: within -10~56 degree C
Life expectancy: Ball bearing: 50,000 hours at 60 degree C.
Sleeve bearing: 20,000 hours at 45 degree C.
Above measurements Tem. at: Within 20~30 degree C.
Above measurements humidity at: 65%+-15%.
Safety Approvals: CE
Net weight : 180 (grams.)
CONNECTOR: L: lead wire
