| MODEL NO. | RATED | RATED | RATED | VOLTAGE | MAX. AIR | MAX.AIR | NOISE | ||
| AMP | RPM | RATED | FLOW | PRESSURE | |||||
| VAC | A | RPM | VAC | CMM | CFM | MM/AQ | INCH/AQ | DBA | |
| 6025AD-HBPL | 115~230 | 0.11~0.07 | 4400 | 100~240 | 0.689 | 24 | 4.6 | 0.18 | 31 |
| 6025AD-HSPL | |||||||||
.bmp)

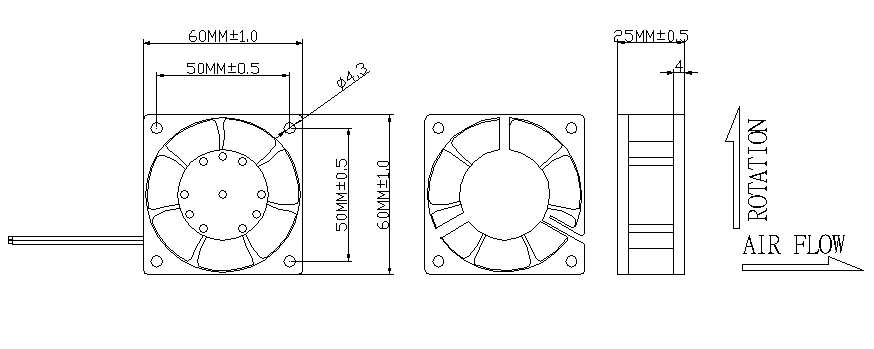

60x60x25mm
EC FAN 60X60X25mm
MODEL NO. 6025AD-*SERIES
Size: 60*60*25mm.
Motor: Brushless DC Motor
Motor protected: polarity+over current shutdown protected. (OCP)
Frame(Houseing): PBT + 30% fiber glass black color UL94-0
Impeller: PBT + 30% fiber glass. Black color, UL94V-0.
Insulation resistance: Min.10M Ohm at 500 VDC between terminal and the frame.
Bearing type: B: 2 ball bearing. Sleeve bearing S: one Sleeve bearing
Operating Temp: Ball bearing: within-20~80 degree C
Life expectancy: Ball bearing: 50,000 hours at 60 degree C.
Sleeve bearing: 20,000 hours at 45 degree C.
Above measurements humidity at: 65%+-15%.
Safety Approvals: CE
Size: 60*60*25mm.
Motor: Brushless DC Motor
Motor protected: polarity+over current shutdown protected. (OCP)
Frame(Houseing): PBT + 30% fiber glass black color UL94-0
Impeller: PBT + 30% fiber glass. Black color, UL94V-0.
Insulation resistance: Min.10M Ohm at 500 VDC between terminal and the frame.
Bearing type: B: 2 ball bearing. Sleeve bearing S: one Sleeve bearing
Operating Temp: Ball bearing: within-20~80 degree C
Life expectancy: Ball bearing: 50,000 hours at 60 degree C.
Sleeve bearing: 20,000 hours at 45 degree C.
Above measurements humidity at: 65%+-15%.
Safety Approvals: CE
