45x45x10mm

DC FAN 45X45X10mm

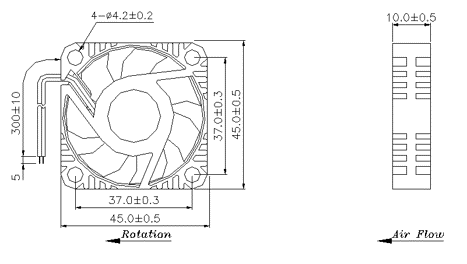

Size: 45*45*10mm.
Motor: Brushless DC Motor
Motor protected: 1,Polarity + impendence
Frame(Houseing): PBT + 30% fiber glass black color UL94-0
Impeller: PBT + 30% fiber glass. Black color, UL94V-0.
Lead wire: 1007#22AWG. UL/CSA.
Insulation resistance: Min.10M Ohm at 500 VDC between terminal and the frame.
Bearing type: B: 2 ball bearing. Sleeve bearing S: one Sleeve bearing
Operating Temp: Ball bearing: within-20~80 degree C
Sleeve bearing: within -10~56 degree C
Life expectancy: Ball bearing: 50,000 hours at 60 degree C.
Sleeve bearing: 20,000 hours at 45 degree C.
Above measurements humidity at: 65%+-15%.
Safety Approvals: CE
CONNECTOR: L: lead wire

Detail

DC FAN Download PDF

MODEL NO.	RATED	RATED AMP	RATED RPM	VOLTAGE RATED VDC	MAX. AIR FLOW		MAX.AIR PRESSURE		NOISE
	VDC	A	RPM	VDC	CMM	CFM	MM/AQ	INCH/H2O	DBA
4010D05-HBPL	5	0.30	6300	4~8	0.328	11.6	4.57	0.180	30
4010D05-HSPL
4010D05-MBPL		0.18	5000		0.251	8.9	2.79	0.110	26
4010D05-MSPL
4010D1-HBPL	12	0.09	6300	6~13.8	0.251	11.6	4.6	0.180	30
4010D1-HSPL
4010D1-MBPL		0.06	5000		0.158	8.9	2.8	0.110	26
4010D1-MSPL
4010D2-HBPL	24	0.04	6300	16~28	0.328	11.6	4.6	0.180	30
4010D2-HSPL
4010D2-MBPL		0.03	5000		0.251	8.9	2.8	0.110	26
4010D2-MSPL

Remark :
　● The above specification data are for reference only, general data tolerance ± 10%
　● Ball Bearing types are 2 Ball Bearing
　● Special design are requested available, please inform us now.
　● Sunta reserves the right to change the data without notice.

Optional Function and Lead wire color

FG：Tachometer speed sensor output signal , open collector 2 square waves per revoluation, lead wire color is white
RD：Alarm output signal : ( motor run-Low, motor stop-High), lead wire color is yellow. DC FAN
